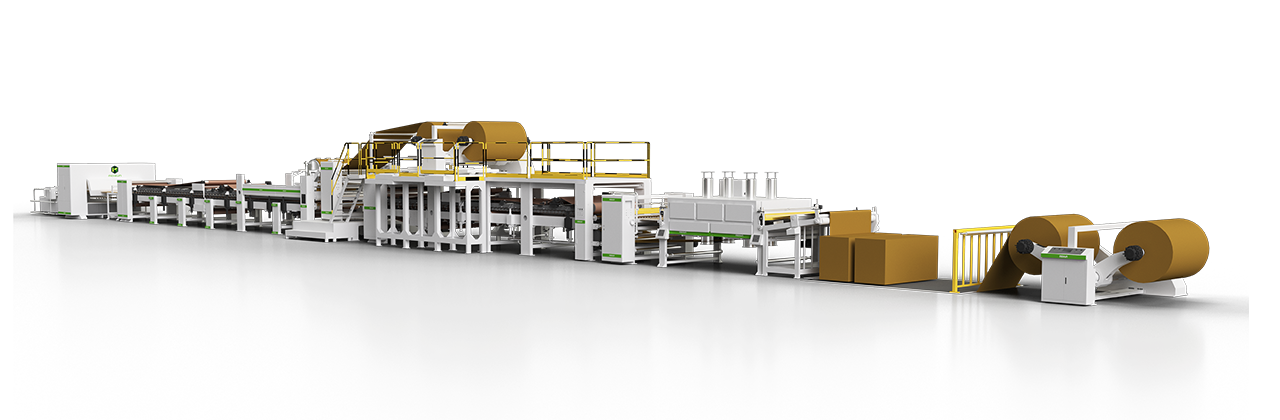

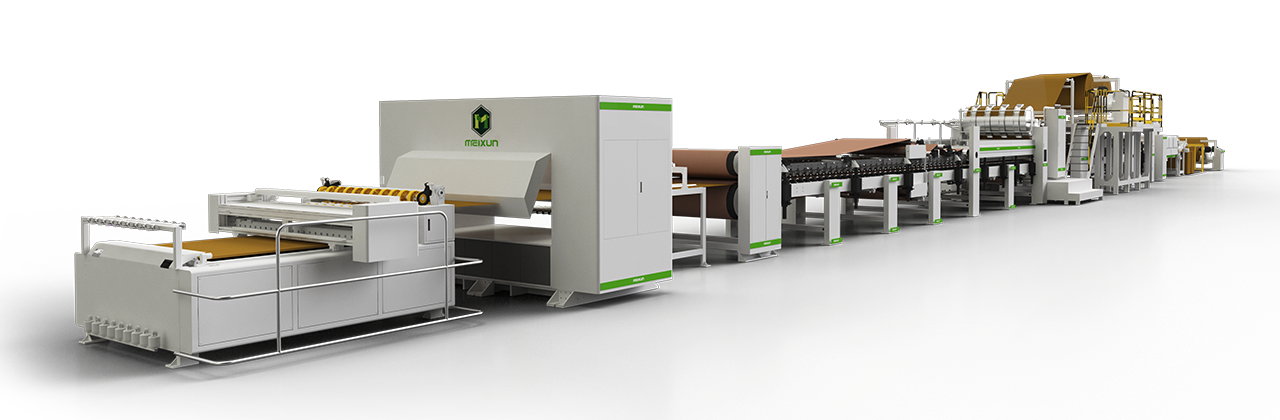

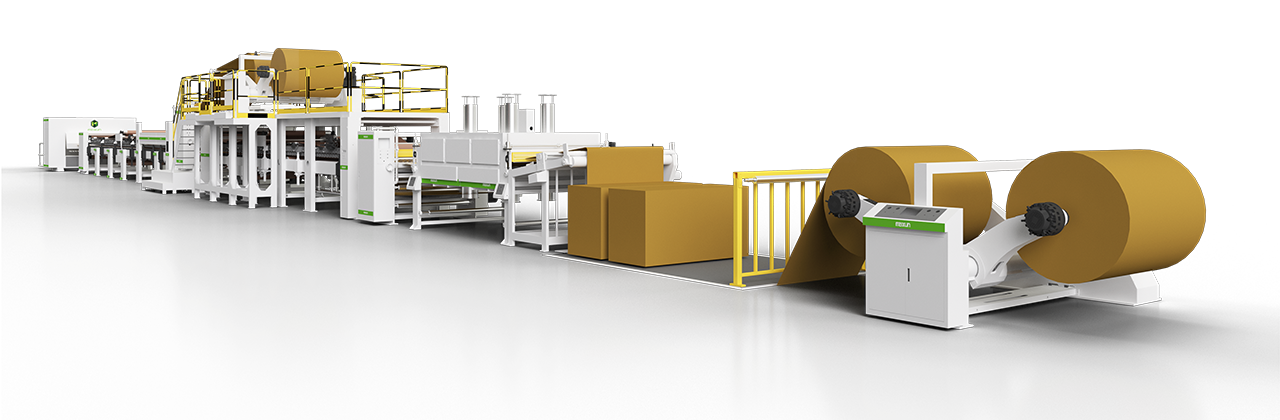

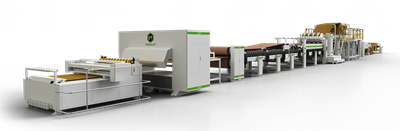

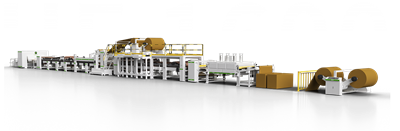

1. Roll the paper below 2.Paper core pulled 3. Paper core drying 4. PaperGlue under core 5.Bottom core surface paper composite 6. Top paper roll paper 7.paperGlue the core 8. Core surface paper composite 9. Cardboard cooling 10.Longitudinal cutter 11.Round knife (cardboard crosscutting) 12. Cardboard collection
The maximum production speed is up to 40m/ min, the whole line is highly automated, the base paper loss is low, and the flatness of the composite board is high

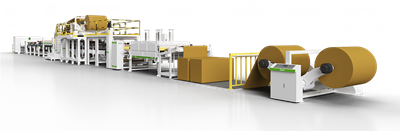

| Machine Model | HF-1600-40J |
| Core Paper Effective Widith | 1600mm |
| Thickness of end product | 5-60mm |
| Length of end product | 800mm-3600mm |
| Production speed | 40m/min |
| Heating method | Steam heating |
| Equipment power | 120KW |
| Overall dimensions | 66327mm long x4500mm wide x 3500mm high |
| Equipment weight | About 80T |
